BOJACK 75+5 uF ±6% 75/5 MFD 370/440 VAC CBB65B Dual Run Start Round Capacitor for Condenser Straight Cool or Heat Pump Air Conditioner or AC Motor and Fan Starting
Product details
| Management number | 225993058 | Release Date | 2026/05/09 | List Price | US$8.76 | Model Number | 225993058 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
BOJACK CBB65 75/5 uf 440 V Round Run Start Capacitor Propiedades del Producto Model: CBB65 Shell material: Case Material Aluminum, Cover Material Steel Dielectric Material: metallized polypropylene film Capacity: 75/5 uf Tolerance: ±5% Rated voltage: 440 V Frequency: 50/60Hz Capacitor dimension:(DiameterxHeight):2.5x5.11 inch Operating temperature: -40℃ to +70℃/-104℉to+158℉ Application This capacitor is used for a compressor motor and a fan motor start-up and operation of AC motors with frequency of 50Hz/60Hz such as Industrial Grade Replacement forCentral Air-Conditioners, Heat Pumps, Condenser Fan Motors, and Compressors.It is small in size, lightweight, heat resisting and anti-explosion.
- CBB65B Capacitor 75/5 uf 370/440 VAC Capacitor. Applicable to the frequency of 50/60Hz AC power supply one-way motor starting and running.
- Operating Temperature Range: -40 ℃ to 85 ℃/ -104℉ to +185℉.Anti-explosion and heat resisting.
- Capacitance Tolerance: ±6%(std.) Operating Frequency: 50/60Hz

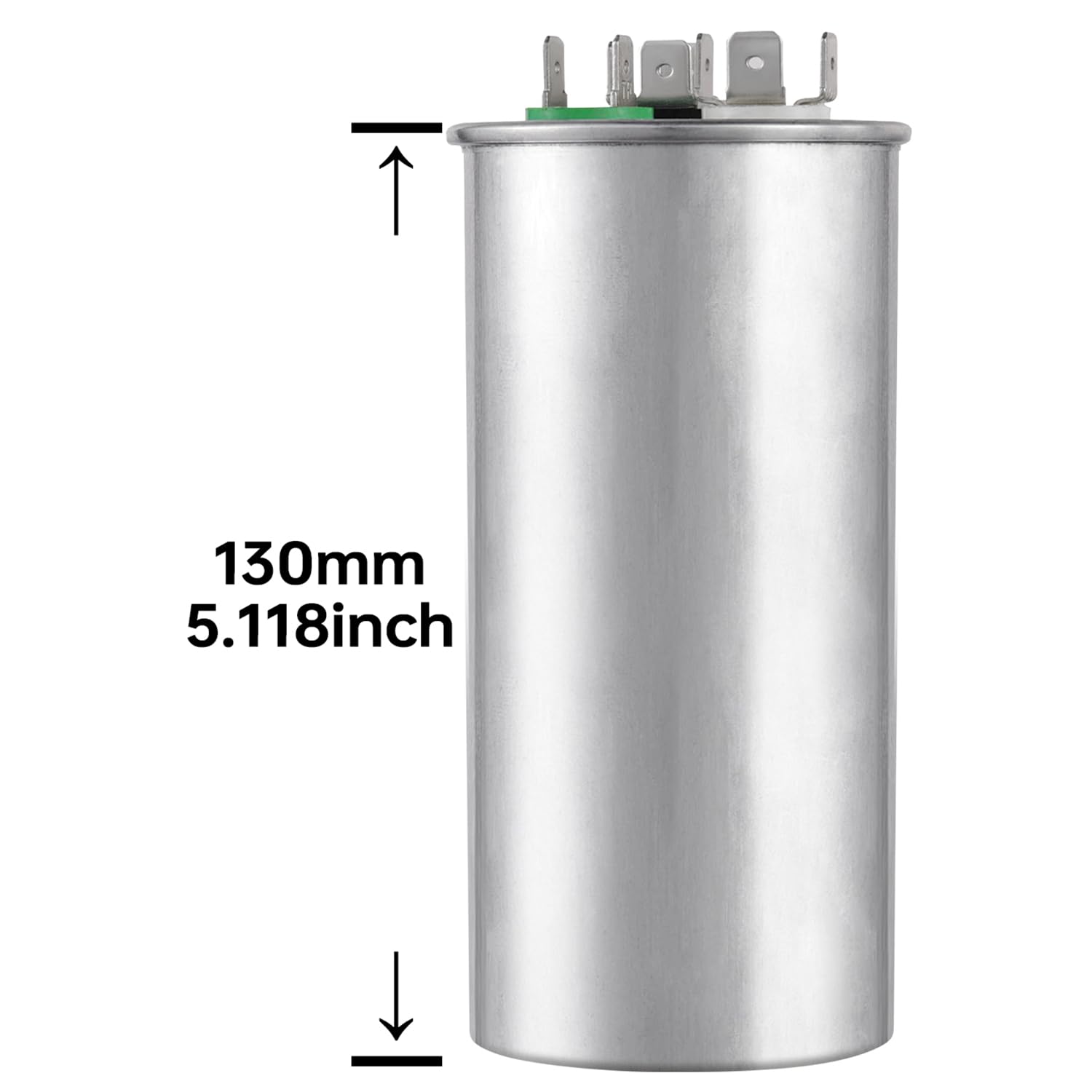

- Dimensions: 2.5x5.11 inch (Diameter x Height)
- Easy to Replace No wiring or adapter changes are required. Capacitor has two terminals on the top.
| ASIN | B0CH84WBKL |
|---|---|
| Model | BJ-755UF-CPA |
| Brand Name | BOJACK |
| Item Shape | Round |
| Capacitance | 75 Microfarad |
| Part Number | BJ-755UF-CPA |
| Manufacturer | BOJACK |
| Material Type | Aluminum |
| Mounting Type | Through-Hole Mount |
| Maximum Voltage | 440 Volts |
| Operating Voltage | 440 Volts |
| Included Components | Capacitor |
| Capacitance Tolerance | 6 |
| Upper Temperature Rating | 85 Degrees Celsius |
